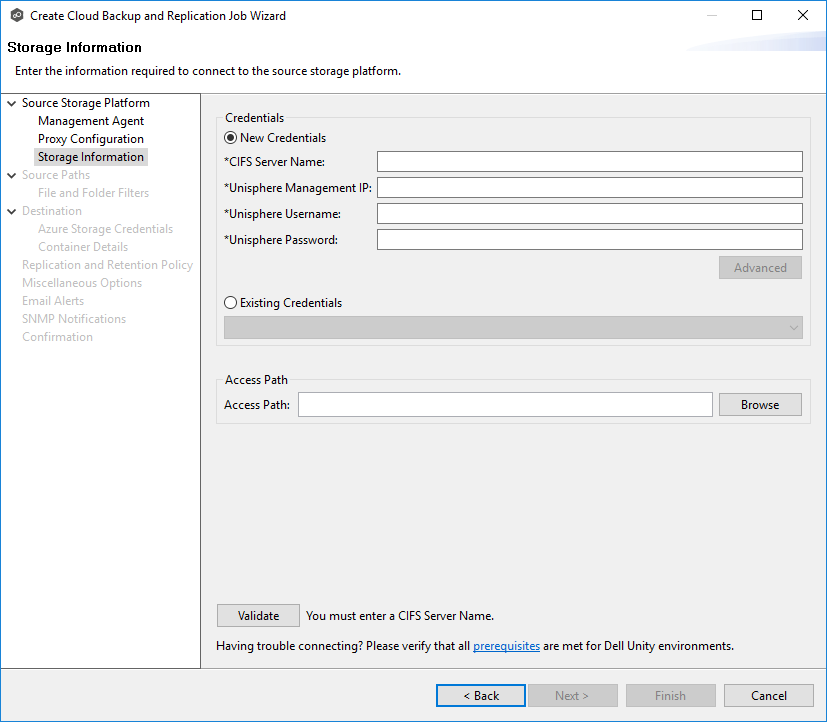

1.Select New Credentials or Existing Credentials to enter the credentials to connect to the CIFS Server hosting the data to be replicated.
2.If you selected Existing Credentials, select a credential from the drop-down list, and then click Next to continue to the Source Paths page.
If you selected New Credentials, enter the credentials for connecting to the storage device.
Field |
Description |
|---|---|
CIFS Server Name |
Enter the name of the NAS server hosting the data to be replicated. |
Unisphere Management IP |
Enter the IP address of the Unisphere system used to manage the Unity storage device. The IP address should not point to the NAS server. |
Unisphere Username |
Enter the user name for the Unisphere account managing the Unity storage device. |
Unisphere Password |
Enter the password for the Unisphere account managing the Unity storage device. |
Access Path |
Use only when experiencing access issues. Contact Peer Software support for more information. |
3.Click Advanced if you want to set advanced options.
4.Click Validate to test the credentials.
After the credentials are validated, a success message appears.
5.Click Next.
The Source Paths page is displayed.
